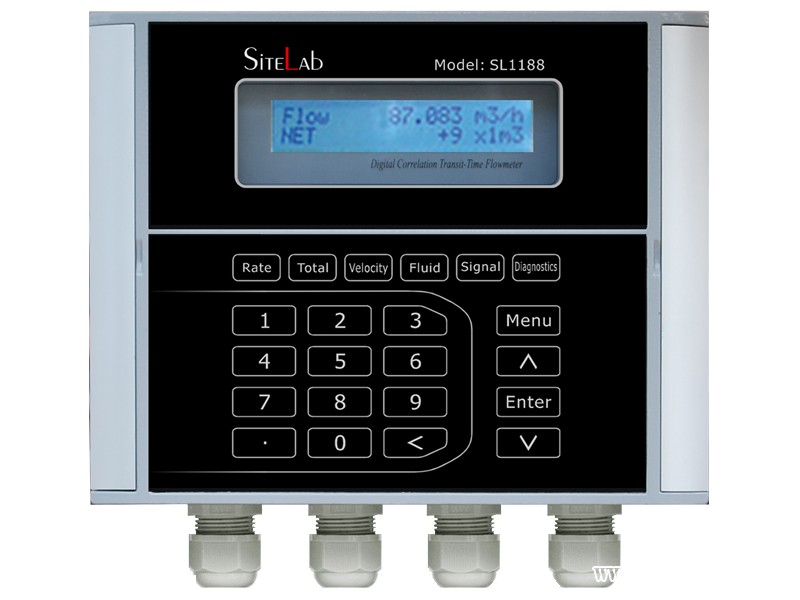

SL1188 ultrasonic flow meter incorporates the latest developments in digital signal processing to provide highly accurate flow measurement and repeated for a wide range of fluid and pipe sizes. It has advanced electronics coupled with powerful ultrasonic transducer to create a universal transit time flow meter became the primary choice of industry leaders.

An easy to read display and clear, user-friendly menu selections make using the instrument simple and convenient. Quick key buttons for flow, totalized flow, velocity, fluid, making signal and diagnostic set and data collection easier. High temperature clamp-on and insertion options available, making the unit more flexible. PCA 's in the meter has been modularized, enabling field swap out for repair or upgrade.

SL1188 also features an alpha-numeric display, parallel operation of the flow totalizers positive, negative and net (with user-selectable scale factors), and configurable pulse, analog and frequency outputs. SD data logging capability is included and energy monitoring is fully supported.

Offers low power consumption and high reliability. The instrument can be configured via keypad without any additional programming devices. It is packaged in a die cast NEMA 4X (IP65) housing, and is available in your choice of transducer configuration of non-invasive clamp-on or insertion.

FEATURES:



   Repetition               :   0, 15%

   Communication    :   RS232 / RS485

   Power Supply         :  10 ~ 245VAC 90 ~ 36VDC

   Weight                     :   4 pounds, 8

   Output                      :   4 ~ 20mA, 750 ohm maximum

                                         October pulse, 0 ~ 10 KHz

                                          Relay output,
