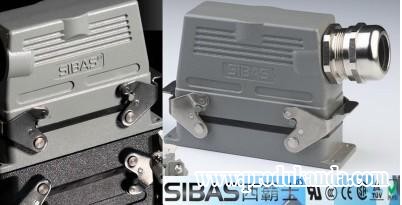

Sibas Heavy Duty connector
Connector Rectangular yang paling banyak dikenal dengan populasi terbesar didunia adalah connector harting product dari Jerman. Namun Demikian banyak connector yang mempunyai jenis dan dimensi sama dengan connector harting dengan harga yang cukup competitive dengan kwalitas tidak kalah dengan connector harting yaitu Connector sibas yang diproduksi di china seperti halnya connector harting.
Heavy duty Connector sibas
mempunyai Serie beragam yaitu :- HA Series
- HE Series
- HEE Series
- HD Series
- HDD Series
- HSB Series
- HEAV Series
- HK Series
- HWK Series
- HQ Series
- HM Series
- Cable Protection accesories
- Hood and Housing
- Special Hood and Housing

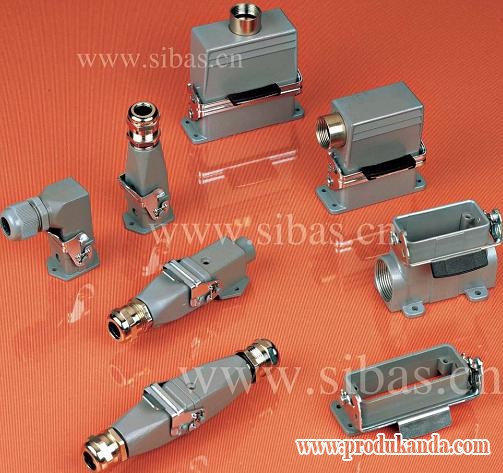

Connector sibas juga memiliki berbagai bentuk housing dan hood serta jumlah contact beraneka ragam dimana jumlah contact ada yang 3, 4, 5, 6, 10, 15, 8, 24 hingga 120 contact tergantung pada jenis type dan aplikasi yang digunakan. Sementara itu pada Connector sibas bentuk hood juga ada yang standart maupun yanng high contruction, begitu juga untuk leveler ada yang single dan juga ada yang double leveler untuk lebih detail dan bisa di klik pada masing-masing series yang terdapat pada Connector sibas di atas.
 HA series compact connectorHA series sibas connector is also known as a compact connector smaller shape, for applications that require installation size smaller applications, the the wiring form of screws Crimp and cold pressing wiring in the form. 3-pin, 4-pin, 10-pin, 16-pin, 32-pin different specifications, including 3-pin and 4-pin specifications shell plastic housing and metal casing can choose. |
|
HE series standard connectorHE series standard sibas connectors, is also the most widely used class of connectors, usually can be divided into the screw type, shrapnel, Crimp crimping type, two-terminal type. Screw crimp type for the most common type. The connectors rated current 16A, voltage of 500V. 6-pin, 10-pin, 16-pin, 24-pin, 32-pin, 48-pin different specifications |
|
HEE series of cold-pressed connectorThe HEE Series sibas connectors as standard Crimp connectors rated current of 16A, rated voltage of 500V, suitable for controlling the line more volume requirements of the occasion, 10-pin, 18-pin, 32-pin, 46-pin, 64-pin, 92-pin different specifications. |
|
HD series cold-pressed connectorThe HD series sibas connectors Crimp connector for compact, rated current 10A, Rated voltage 250V, suitable for controlling the line more volume requirements of the occasion, the 7-pin, 8-pin, 15-pin, 25-pin, 40-pin, 50-pin, 64-pin, 80-pin, 128-pin different specifications. |
|
HSB series of high-current connectorsThe HSB Series sibas connectors are also referred to as high-current connectors (35A), applied to the power line, motors and other applications, the wiring in the form of screws Crimp form. 6-pin, 12-pin different specifications. |
|
HQ series of miniature connectorsHQ series connectors for micro Crimp connector, standard rated current of 16A or 10A, rated voltage of 500V or 400V, suitable for motor and spatial tiny occasions, 5-pin, 7-pin, 8-pin different specifications. |
|
HK series combination of connectorsHK series sibas connector combination-type connector, is usually a combination of the large current and a small control current, applicable to the power supply and control lines for the occasion of the overall arrangement, 4 +0 needle, 4 +8, 4 +2 needle needle , 6 +6 pin, pin, 8 +24 12 +2 pin, pin 6 +12, 6 +36 pin different specifications. |
